THINKY MIXER (Non-Vacuum)
AR-100
The most compact THINKY mixer — perfect choice for R&D applications and small batch sizes.
140 g
Gross Weight
100 mL
Standard Container
50 mL
Optimal Volume
Gallery
THINKY AR-100
- Ideal for R&D – perfect for initial testing where small amounts of materials are repeatedly used
- No cleanup – our 100 mL disposable cups eliminate the need for cleaning

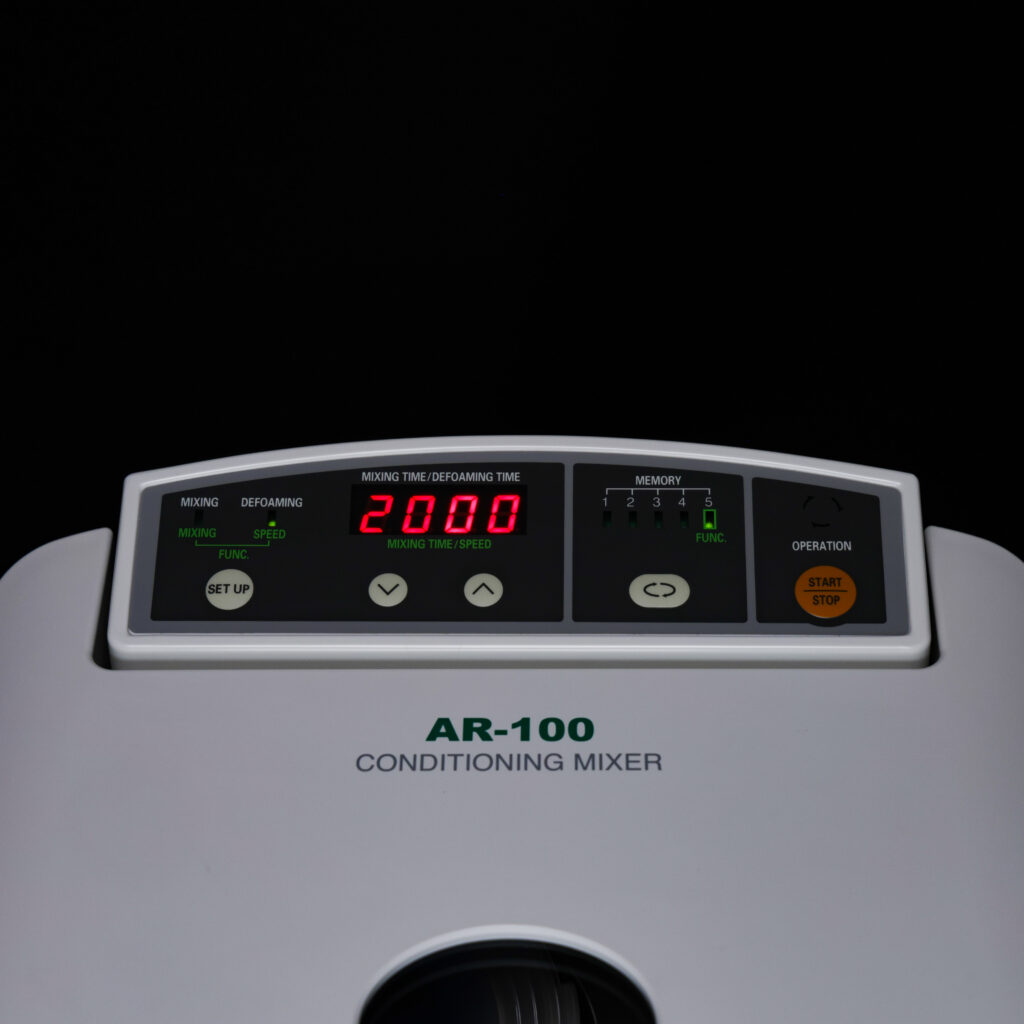

- Simple operation – memory function allows quick setting of mixing and deaeration conditions
- Suitable for a wide range of materials – including pastes, slurries, powders, and liquids
Key Features
- Compact design ideal for R&D and QC tasks
- Max. mixing volume: 50 mL
- Standard 100 mL disposable containers
- Memory function for preset mixing/degassing conditions

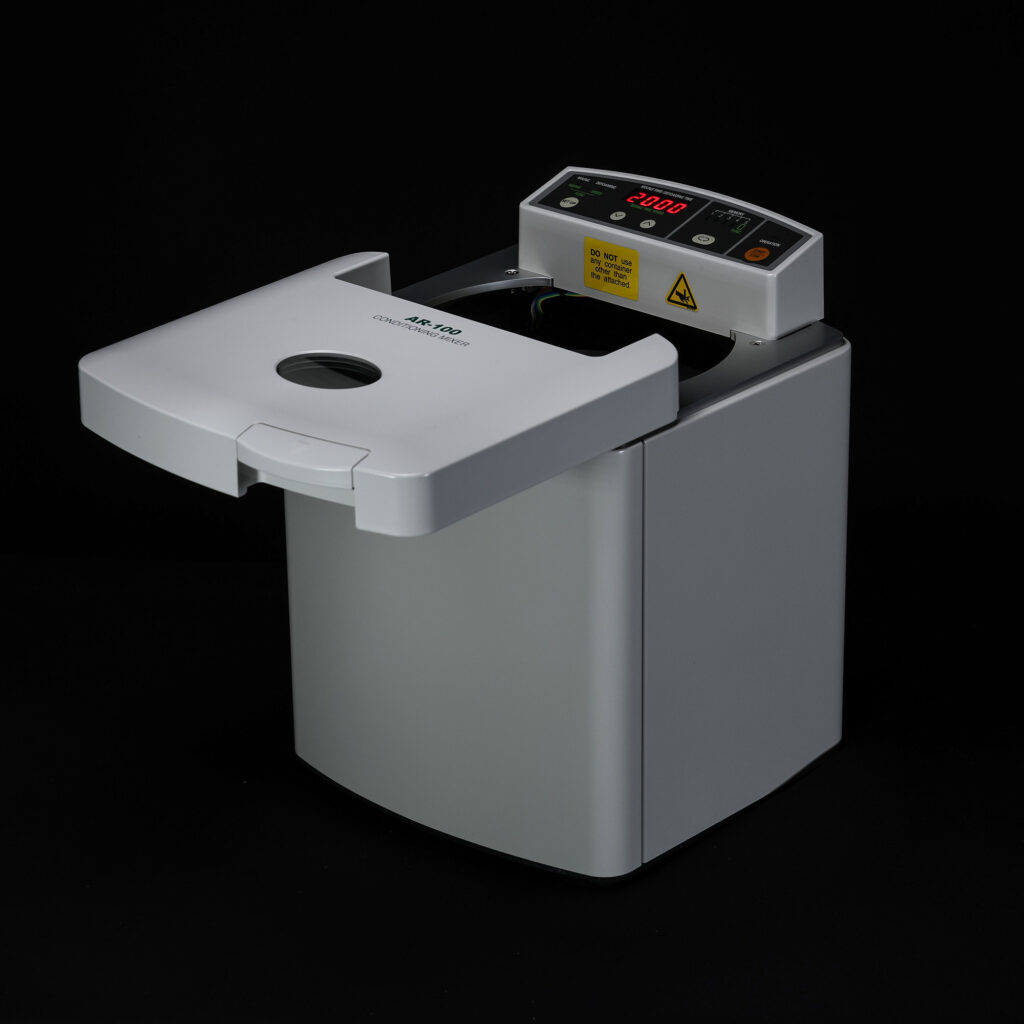

- Sliding door for safe and easy access
- Strobe function for mixing status monitoring
Specifications
Model
AR-100
Maximum Capacity
Up to 140 g total (including materials, containers, and adapters).
Standard Container
100 mL disposable polypropylene (PP) container.
Power Supply
- Voltage: Single-phase AC 120 V ±10%
- Frequency: 50/60 Hz
- Power Consumption:
Standby: Approx. 50 VA
Maximum during operation: 800 VA
Unit Dimension
12.9 × 9.8 × 9.8 in (H × W × D)
Unit Weight
Approx. 33 lbs (15 kg)
Accessories
Instruction Manual
AC cable

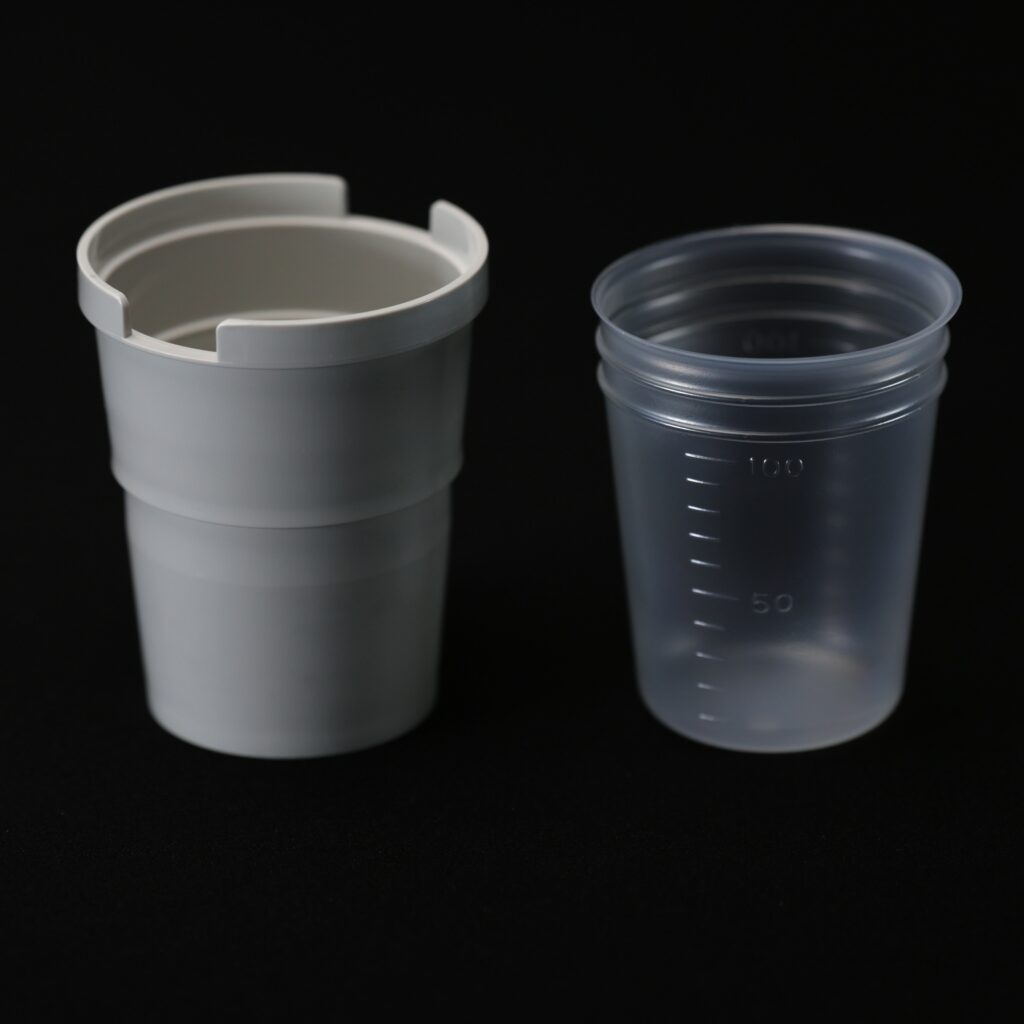

100AD-100DSP adapter, 3 pcs
100 ml DSP polypropylene disposable container, 10 pcs
Option
Smaller plastic and glass containers can be used via an adapter. Syringe adapters are available.
