3, 5, & 10 cc
Designed for Luer lock syringes
1,2, 3 or 4
Barrels
Optional Vacuum
(pump not included)
Gallery

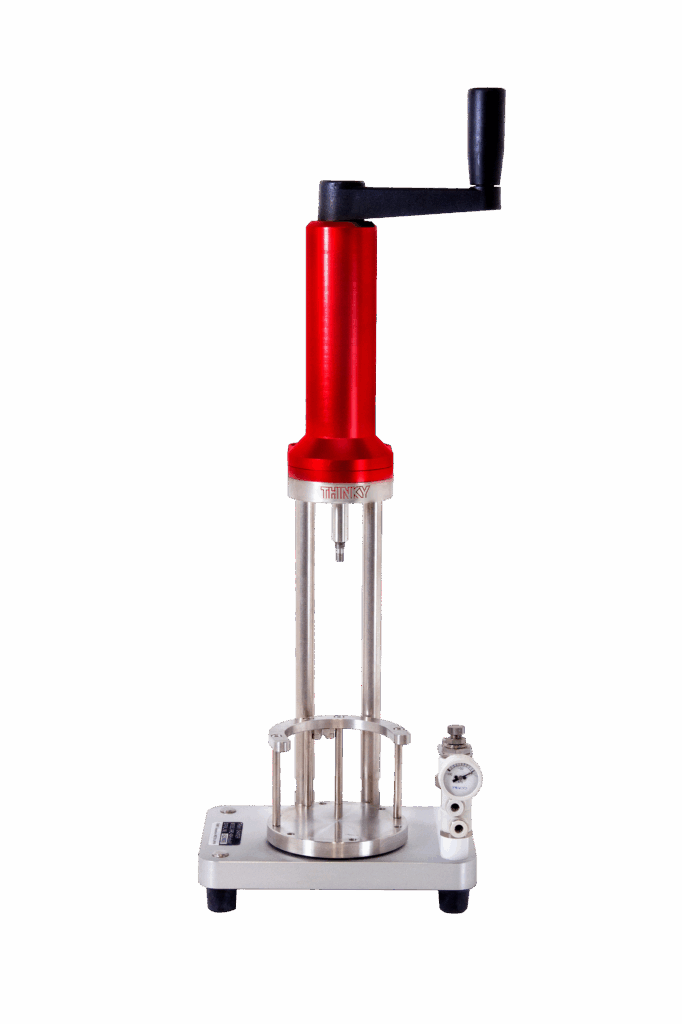

ARC-40H
Simplify material transfer from the mixer to the syringe barrels for faster, more efficient filling.
Key Features
- Designed to work in tandem with any of the 310/312 series THINKY mixers
- Nordson, EFD, Musashi or other types of Luer lock syringes
- Designed for 3, 5, and, 10 mL syringes
- Fill one to four syringes at once
- Suitable for high viscosity materials
- Filling under vacuum is optional
Specifications
Model
ARC 40H
Syringe Types
3mL, 5mL and 10mL by Nordson, EFD and Musashi
Power Supply
None
Unit Dimension
H22" × W8" × D6"
Unit Weight
16.5 lbs
Included Accessories
Instruction Manual x 1,
Specially designed container 300 mL x 2, Piston x 2, Vacuum head x 1,
Plug x 3, Syringe cap with check valve x 1 of each size, Cleaning container set x 2
