1,100 g
Max. gross weight
650 mL
Standard Container
275 mL
Optimal Volume
Gallery

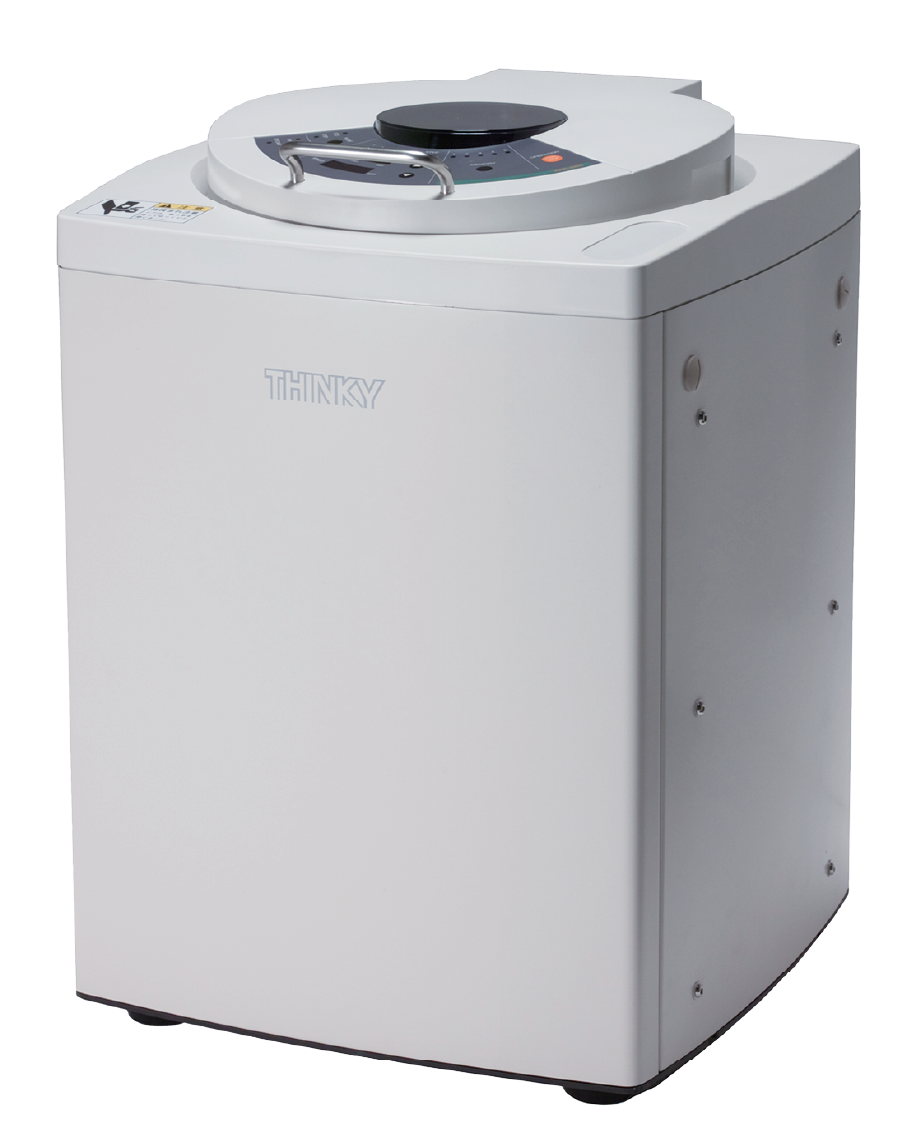

ARE-500 Mixer
THINKY ARE-501 features an increased maximum revolution speed, significantly enhancing its mixing power and making it suitable for a broader range of materials and applications. Additionally, the optimized revolution-to-rotation ratio facilitates seamless recipe scaling from smaller THINKY models, streamlining the transition from lab-scale development to full-scale production.
Key Features
Rotation Speed
Planetary Centrifugal Mixer (Non-Vacuum)
Container Volume
550 mL and 650 mL
- Perfect for scaling from smaller THINKY mixers to larger batch sizes
- Optimized rotation/revolution ratio Simplifies recipe adjustments
- User-friendly touch panel for quick and easy mixing setup
- PC connectivity to support traceability and remote control
- Works with syringes, 6 oz SEMCO barrels, and disposable containers via adapters.
- Programmable memory function for ease of operation
Specifications
Model
ARE-500
Maximum Capacity
1.1 kg (gross)
Standard Container
650 ml resin container
Power Supply
Voltage: Single-phaseAC 100 V ± 10 %, 50/60 HzPower consumption:Approx. 50 VA (standby)Max 1400 VA (operation)
Unit Dimension
H692×W500×D500（mm）
Unit Weight
Approx. 95kg
Accessories
Instruction Manual × 1AC cable (including 3P adapter) × 1,HDPE 550 ml container × 3,300 ml container × 3,Adapter for 300 ml container × 1(including 3 types of O-ring (1 each))Phillips screwdriver × 1,L-shaped wrench large × 1,L-shaped wrench small × 1,Spanner × 1,Hexagon head bolt M16 × 200(for carrying the unit) × 4
Options
Mountain Stand
