THINKY MIXER (Non-Vacuum)
ARE-501
A largest non-vacuum THINKY planetary centrifugal mixer designed for efficient mixing, dispersing, and deaerating of larger batches in manufacturing settings.
1,100 g
Max. gross weight
650 mL
Standard Container
275 mL
Optimal Volume
Gallery

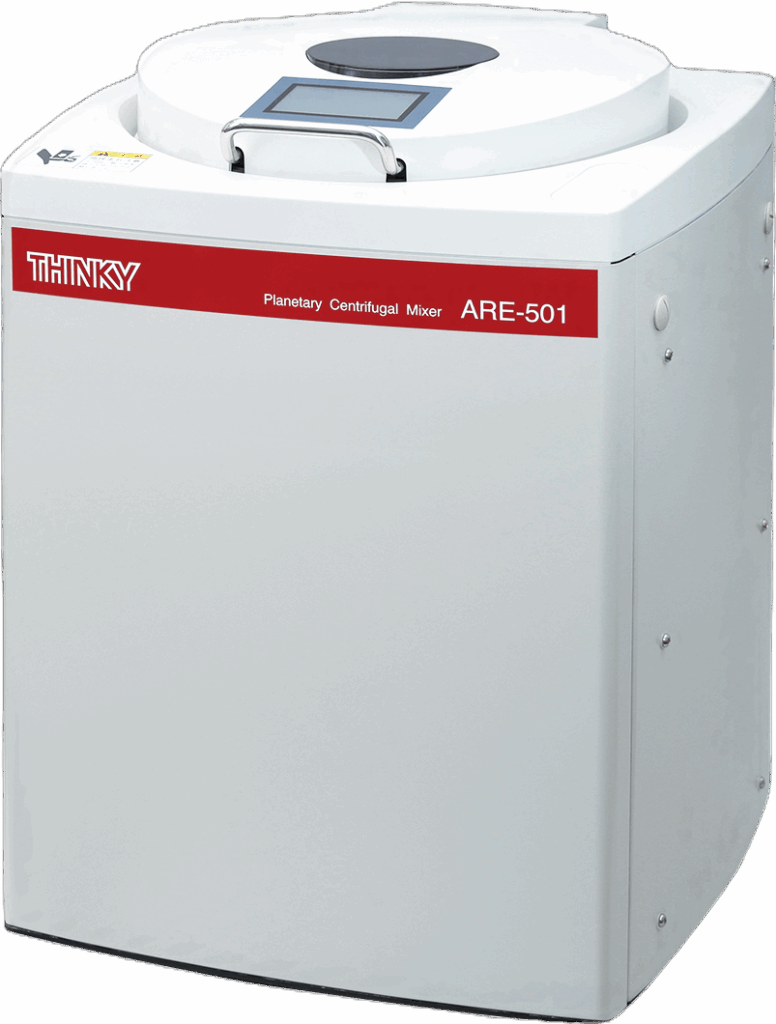

ARE-501 Mixer
THINKY ARE-501 features an increased maximum revolution speed, significantly enhancing its mixing power and making it suitable for a broader range of materials and applications. Additionally, the optimized revolution-to-rotation ratio facilitates seamless recipe scaling from smaller THINKY models, streamlining the transition from lab-scale development to full-scale production.
Key Features
- Perfect for scaling from smaller THINKY mixers to larger batch sizes
- Optimized rotation/revolution ratio Simplifies recipe adjustments

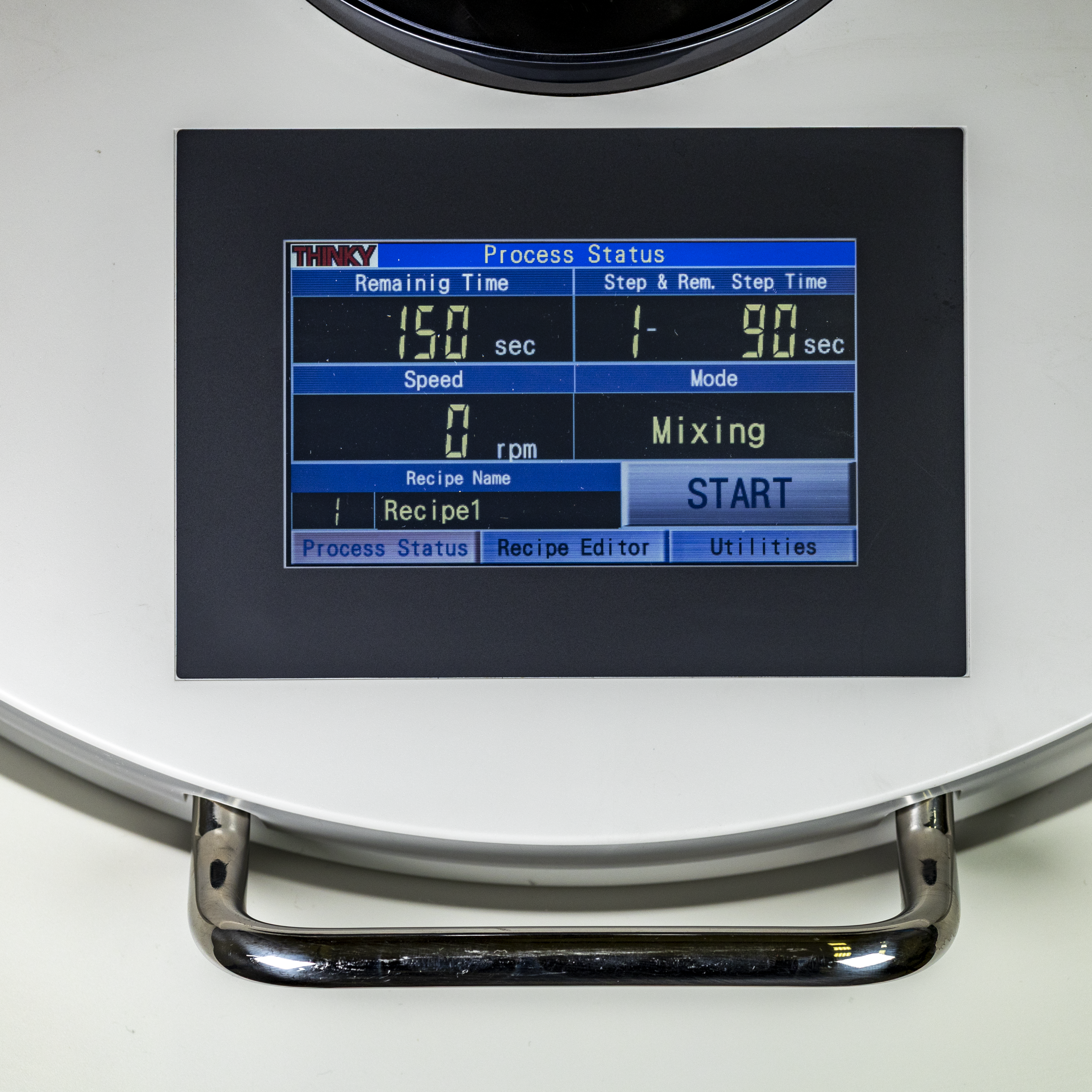

- User-friendly touch panel for quick and easy mixing setup
- PC connectivity to support traceability and remote control
- Works with syringes, 6 oz SEMCO barrels, and disposable containers via adapters.
- Programmable memory function for ease of operation
Specifications
Model
ARE-501
Maximum Capacity
1.1 kg (gross)
Standard Container
550 mL and 650 mL HDPE cups
Power Supply
Single-phase AC 100 V ± 10 %, 50/60 Hz.
Power Consumption
Approx. 50 VA (standby) Max. 1500 VA (operation)
Unit Dimension
H 27.0 × W 19.7 × D 19.7 in
Unit Weight
209 lbs
Accessories
THINKY ARE-501Instruction Manual and an AC cable,
HDPE 650 ml container x 2 pcs,
HDPE 550 ml container x 2 pcs,
HDPE 300 ml container x 2 pcs,
Adapter for 300 ml HDPE container x 1 pc (including 3 types of O-ring (1 each)), Phillips screwdriver x 1,
L-shaped wrench large x 1, L-shaped wrench small x 1, Spanner x 1, Bolt wrench x 1,
Hexagon head bolt M16 × 200 (for carrying the unit) × 4pcs
Options
A Support Stand, Model : ST-50X
