Vacuum THINKY Mixer
ARV-310P
Advanced Vacuum Mixer for Exceptional Consistency and Sub-Micron Air Removal
310 g
Max. gross weight
300 mL
Standard Container
Integrated Vacuum
Gallery
Key Features
- Simultaneous Mixing & Deaeration – Combines mixing, dispersion, and submicron air bubble removal.
- High-Viscosity Material Processing – Efficiently deaerates materials difficult for centrifugal separators.
- Improved Processing Efficiency – Faster mixing and superior deaeration compared to atmospheric mixers.
- Integrated Adjustable Vacuum – Enables optimized deaeration for different materials.

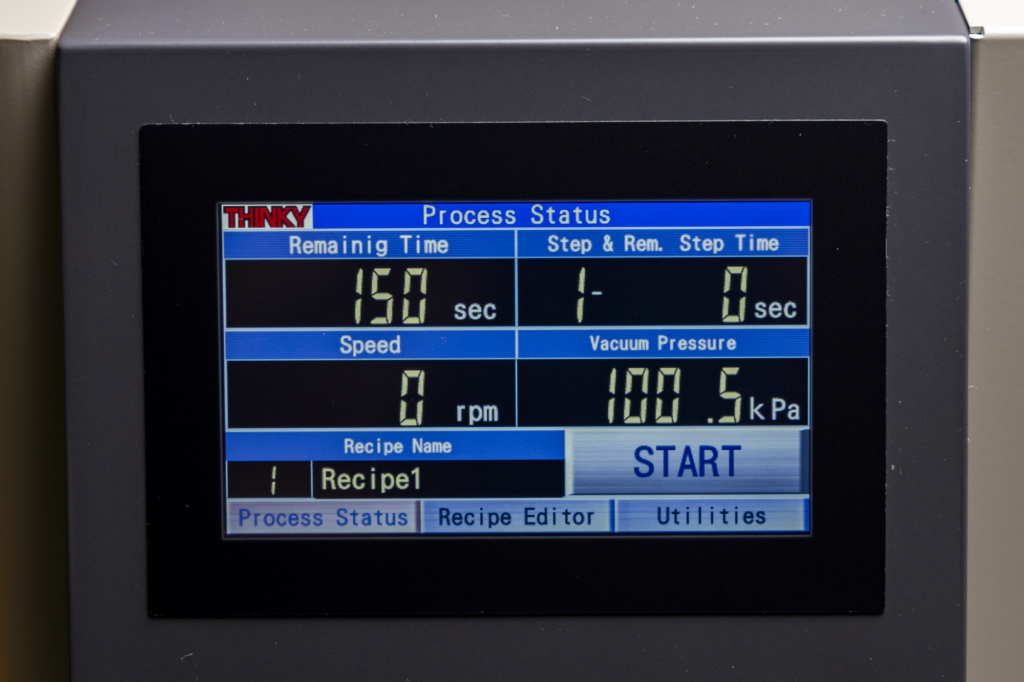

- LCD Panel with Recipe Function – Real-time display of RPM and ability to set and save recipe names.

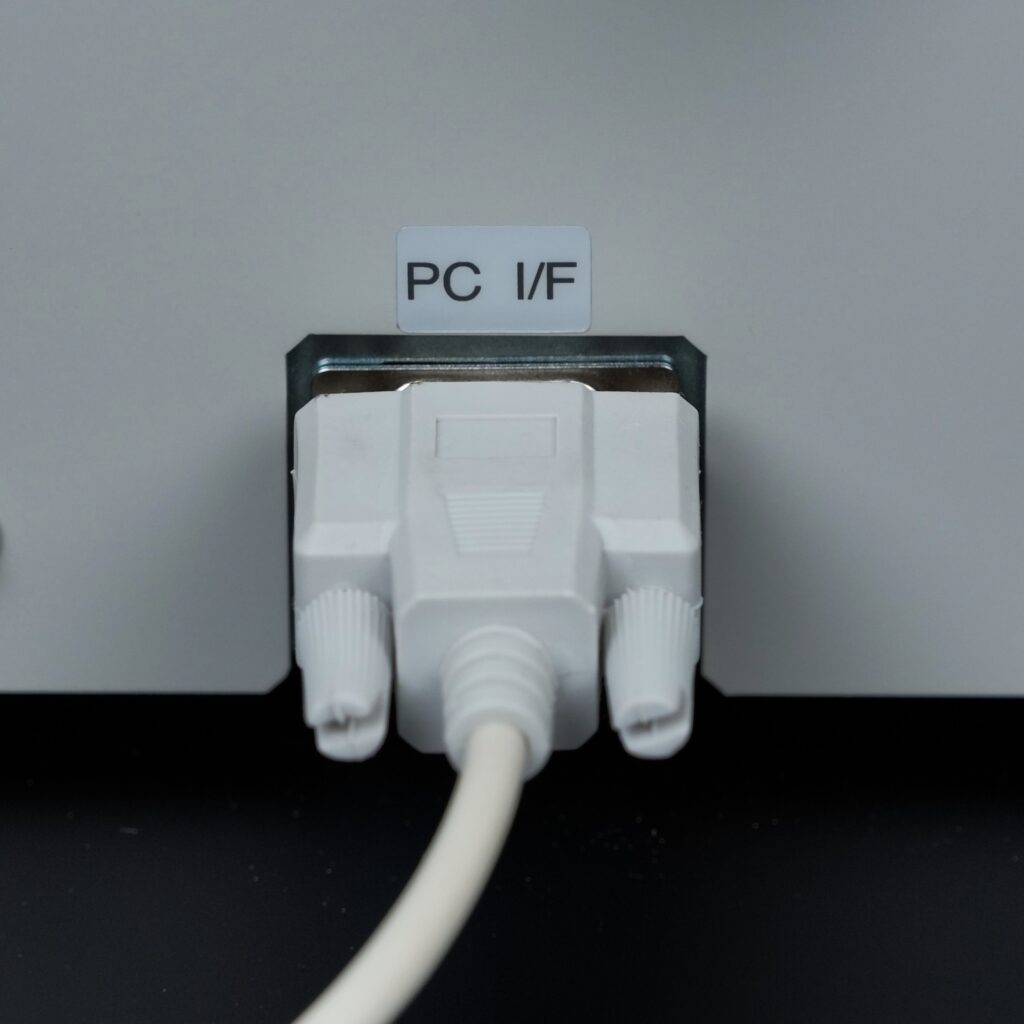

- Traceability Function – Supports automatic operation and generates process data logs.
Specifications
Model
ARV-310P
Maximum Capacity
310 g
Standard Container
300 mL HDPE
Power Supply
Single-phase AC 100 V ± 10 %, 50/60 Hz. Power consumption: approx. 50 VA (standby); max 1200 VA during operation.
Unit Dimension
H18" × W22" × D25"
Included Accessories
Instruction manual, AC cable (including 3-pin adapter) (1), HDPE 300 ml containers (3), 1 150 ml container (1), perforated inner and outer lids (3 each for 300 ml containers, 1 each for 150 ml containers), 1 adapter for 150 ml container (including extra
rubber ring). vacuum pump oil
Unit Weight
198 lbs
