Vacuum THINKY Mixer
ARV-931TWIN
Next-generation vacuum mixer designed for advanced material manufacturing.
930 g x 2
Max. gross weight
750 mL
HDPE Standard Container
500 mL
Optimal Volume
Gallery

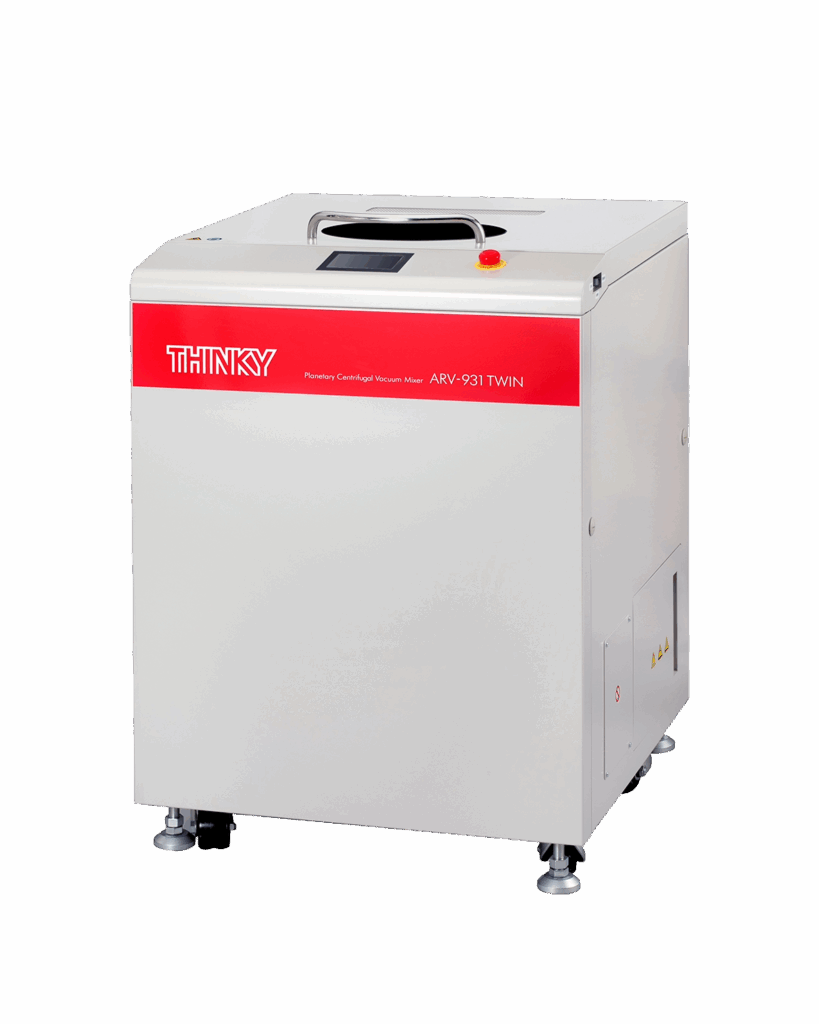

ARV-931TWIN
Our midsize advanced vacuum planetary centrifugal mixer that delivers uniform, bubble-free mixing with precise, programmable touch-panel control.
Key Features
- Simultaneous Mixing & Defoaming – Up to 670 G vacuum centrifugal processing.
- Submicron Bubble Removal – Eliminates extremely fine air bubbles.
- Adjustable Speed Control – Optimized for different material properties.
- Scale-Up Compatible – Inherits performance from the THINKY MIXER ARV-310P.
- Touch Panel Operation – Easy condition setting and control.
- Remote Communication – Supports remote operation and process traceability.
Specifications
Model
ARV-931TWIN
Maximum Capacity
930 g X 2 (gross weight)
Standard Container
750 mL HDPE
Power Supply
Three-phase AC 200 V ± 10 %, 50/60 Hz
Power consumption: approx. 120 VA (standby) Max 4400 VA (operation)
Unit Dimension
H 35.4 × W 26.0 × D 26.4 in
Standard Accessories
Instruction Manual × 1, Communication Specifications Manual × 1, Power cable × 1, HDPE 750 ml container × 6, (O-ring × 4, Inner lid without hole × 2, Inner lid with hole × 4, and Outer lid with hole × 6), 550 ml container × 6 (Adapter × 2), Silicon Sheet × 4,Holder Adapter×1, Phillips screwdriver × 1, Hexagon wrench × 1, Bolt × 2, Vacuum pump oil × 1, Funnel ×1, Software CD × 1
Unit Weight
529 lbs.
